SPECIFICATIONS

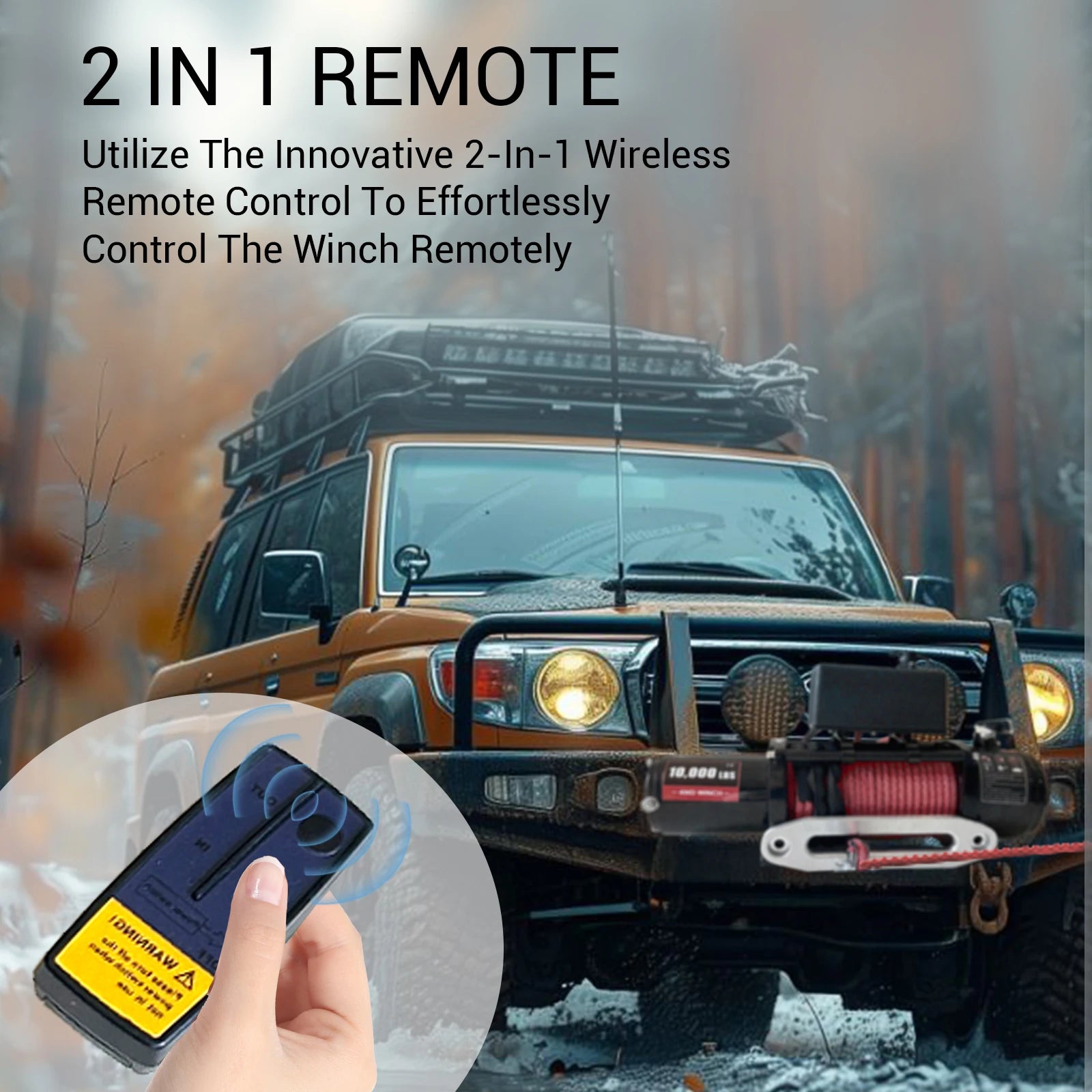

[Features] Our winch uses a new generation of wireless remote control with a waterproof rating of IP66, which can be accurately operated from a distance regardless of terrain or weather. This multi-function controller combines wired and wireless control (up to 35 meters).

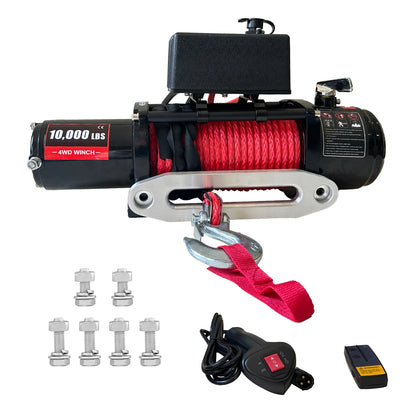

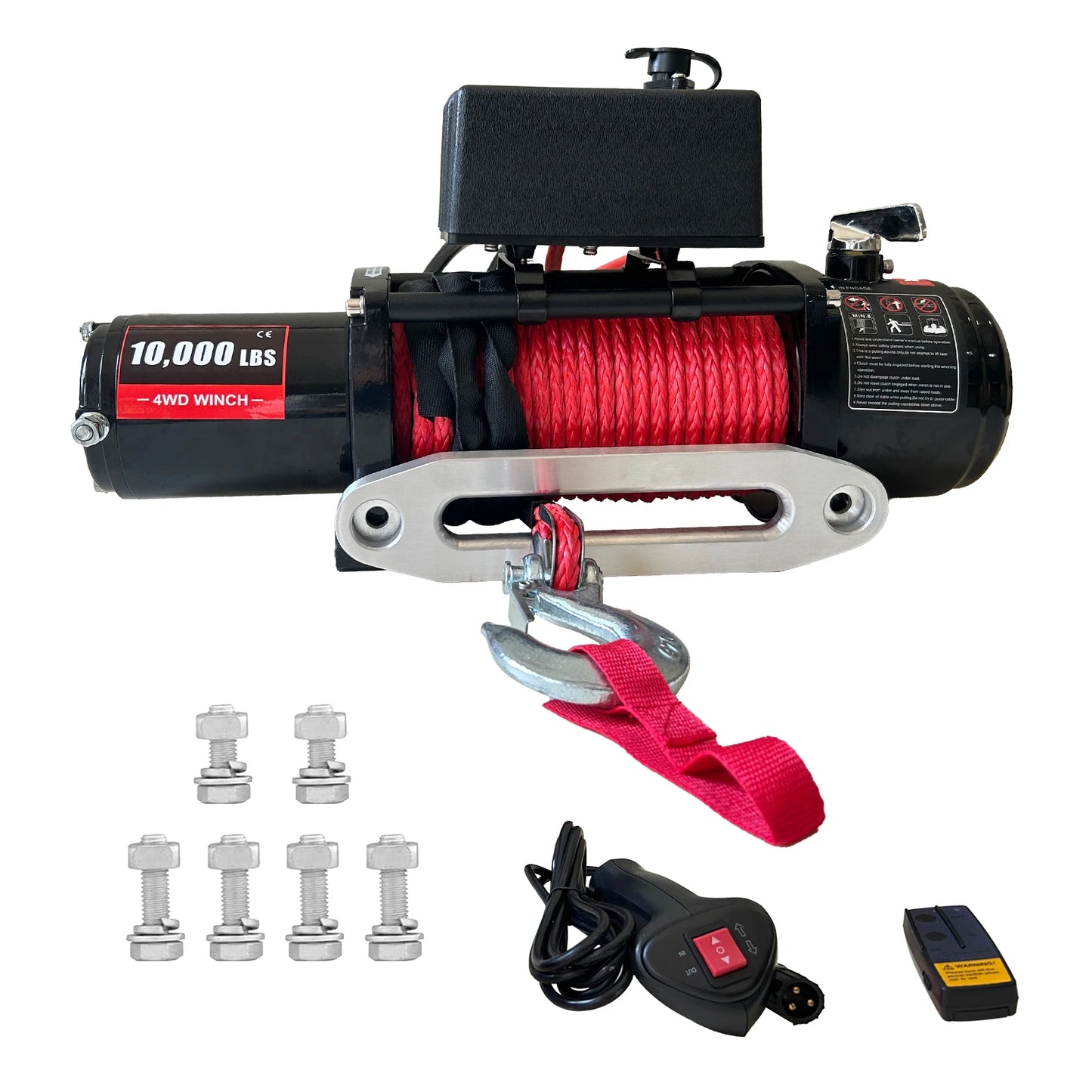

[Electric Winch] The 10000 lb winch is driven by a 4.5kw/5.6hp output permanent magnet DC 12V motor. The new solenoid valve successfully implements the principles of heat insulation, toughness, and high stability, avoiding the problem of insufficient solenoid valve power causing damage to the winch or motor burnout. The new clutch system strengthens the connection between the clutch and the gear, making it more difficult for the clutch to be damaged.

[Safety] In order to achieve positive load control, it is equipped with power input and power output motors. The strong current can not only support the motor to run smoothly and work within the rated current range without any current influence, but also always ensure the safety of the electric winch and your safety. The 3-stage, 5.6 HP tandem motor is equipped with a 218:1 planetary gear ratio.

[Gear System] With its modern and effective 3-planetary gear system, free-winding clutch, and the ability to provide powerful pulling power under load and higher line speeds, this electric winch will prove to be an invaluable traveling companion.

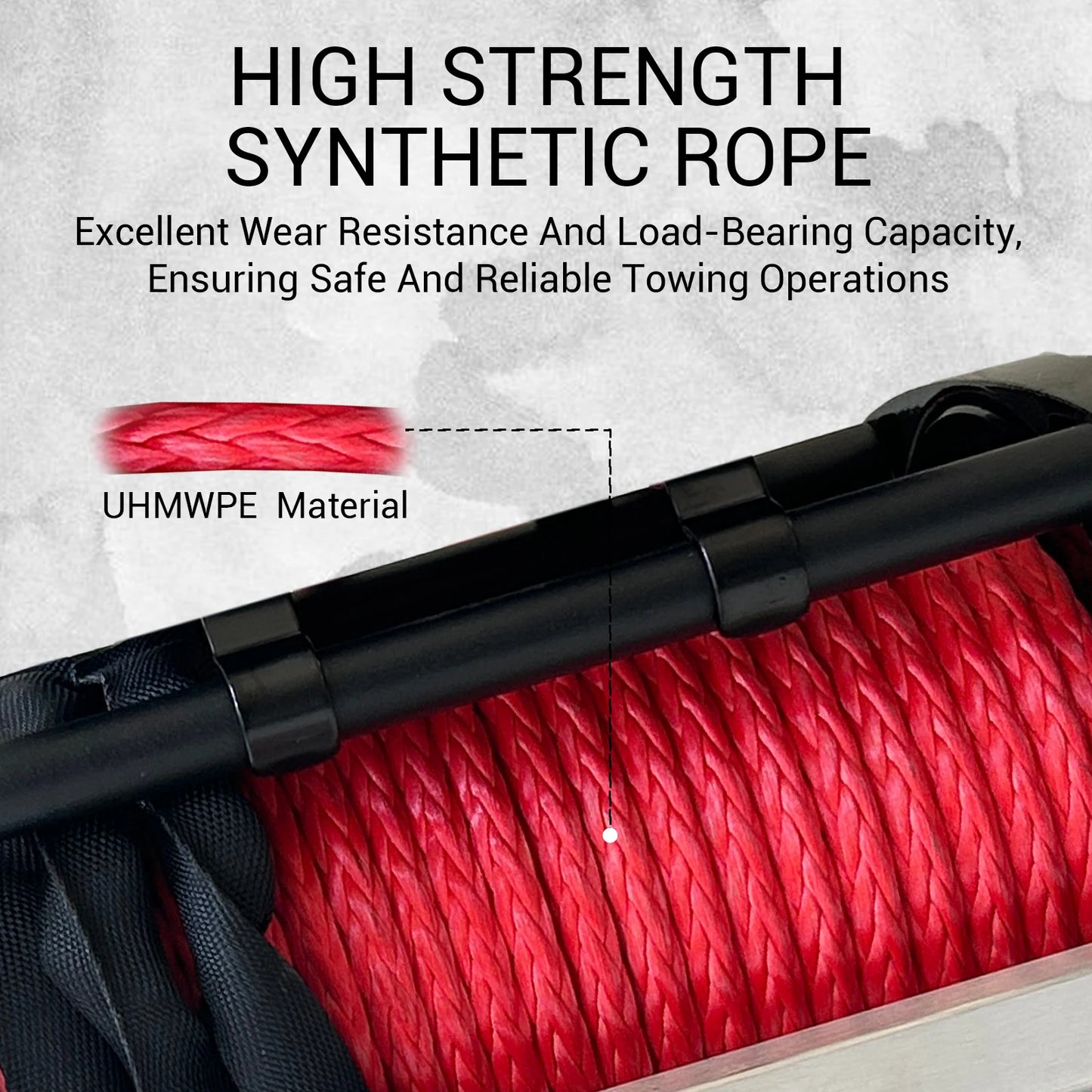

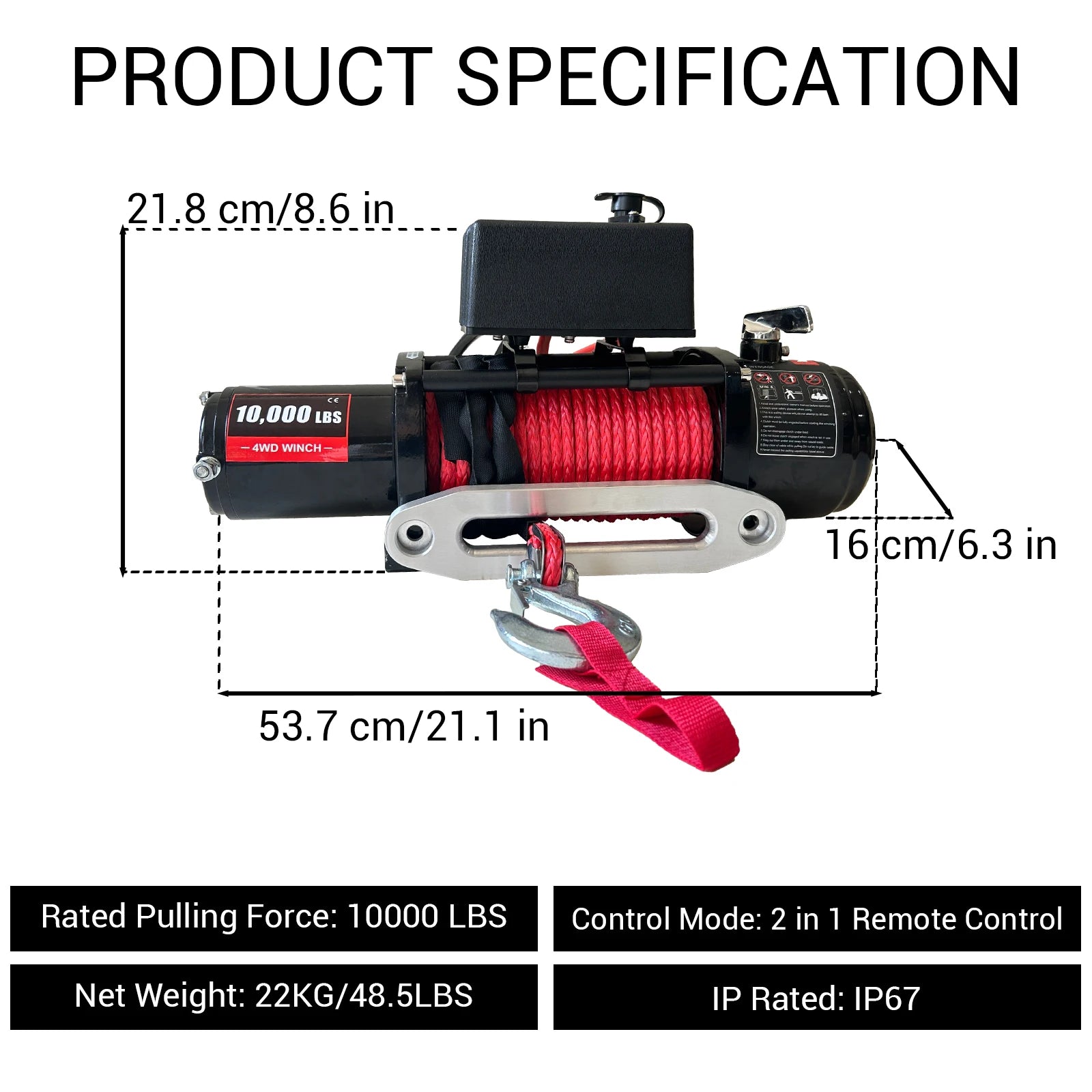

[Mounting Dimensions] (L X W X H) 20.8"X 6.5" X 10.24", Mounting Bolt Type: 10.00 ± 0.015" × 4.50 ± 0.010". Synthetic Rope: 3/8" x 85 feet.
